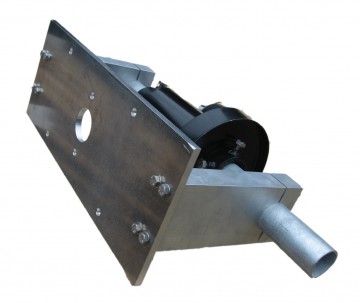

SPID BIG-RAS/HR Az & El Rotor < New Model >

€ 2.395,00 (including VAT 21%)
In stock - Delivery 2 business days
Product code 56-15
Net weight 25,00 Kg
Dimensions (l,w,h) 50 x 45 x 45 cm

NEW Model SPID HIGH RESOLUTION ROTOR for Azimuth and Elevation
RESOLUTION: 0.1 Degree !

This BIG-RAS/HR is supplied with: New pulse count electronincs and new IP-68 Connector set !!

This SPID Rotator, Part Number: BIG-RAS/HR and MD-01 is a high persision (track) rotator system.
Rotator Controller MD-01 (Option MD-02) has many functions which can be configured by the user, a Dual Voltage power supply PS-01 (Option PS-02) is available.

SPID BIG-RAS/HR rotor is a two engine rotor which has installed two position sensors who count 0,1 degree on impulse.

To control the rotor through the MD-01 controller you need 4-core control cable (4*1.5mm2) to control the AZ & EL engines and 8-core to detect the positions sensors.

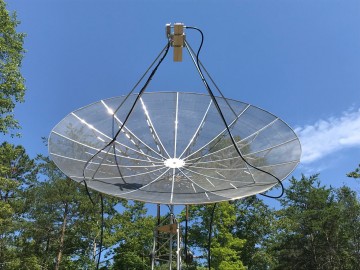

* BIG-RAS/HR will handle Big systems arry's, dishes up to 6 Meter !!
Note: For smooth Elevation rotation it is recommended to add counterweights to this section to create balance 1


Heavy duty antenna mounting bracket = Option !


The BIG-RAS/HR rotator can be mount on a pipe of max. 68mm.
Max. diameter pipe for elevation is 51mm

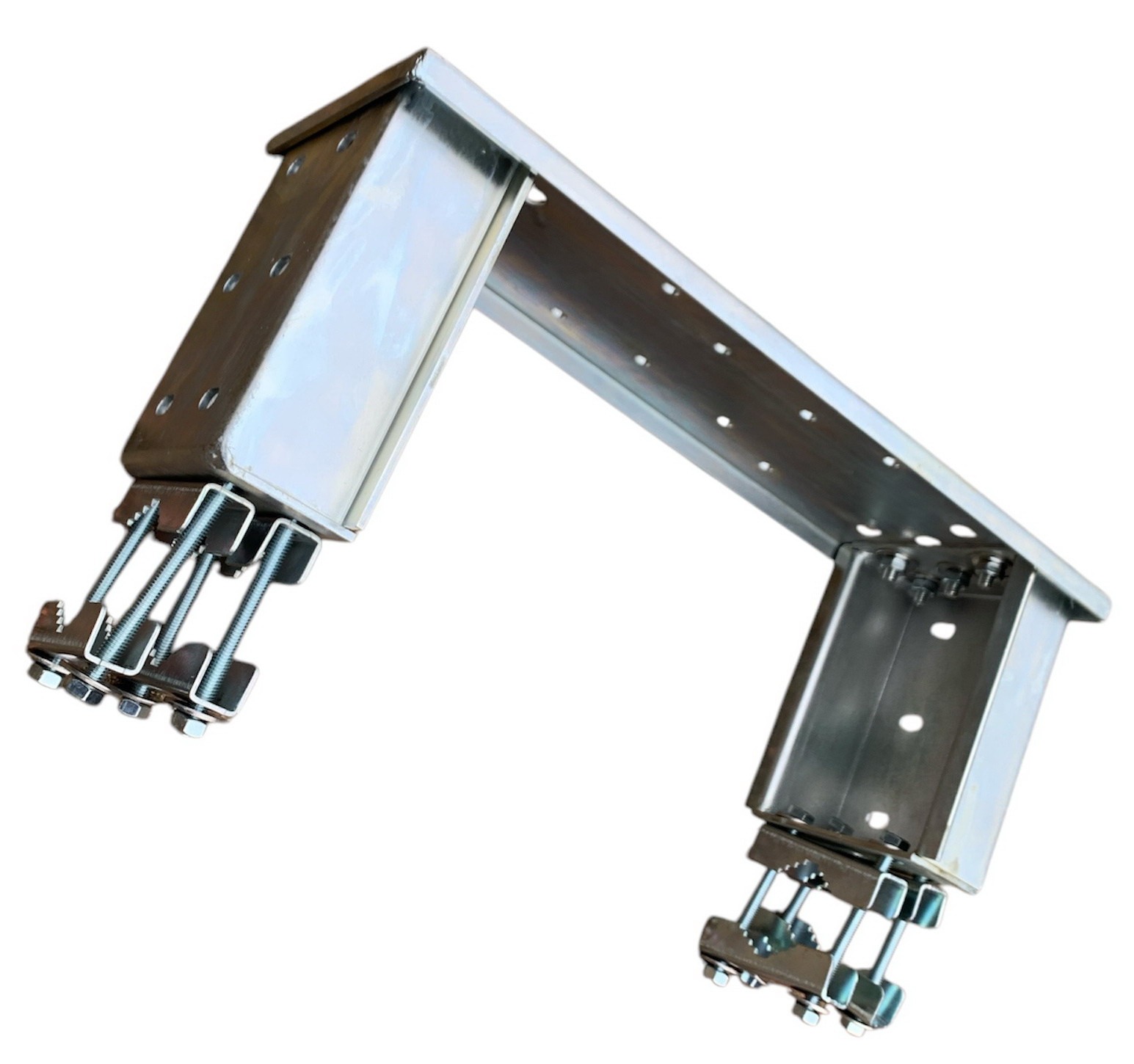

A XXL Heavy Duty mounting bracket is available, to mount for example a 4.5Meter Dish at the rotator.

SPID BIG-RAS/HR system is supplied including:

* High Resolution BIG-RAS/HR Rotor
* MD-01 Rotor Controllor with Display (MD-02 option)
* MD-01dde Software (to control rotor from PC)
* USB driver
* Connectors
