SPID RAK/HR & MD-0X controller

€ 999,00 (including VAT 21%)
In stock - Delivery 2 business days
Product code RAK/HR-9
Net weight 12,00 Kg
Gross weight 35,00 Kg
Dimensions (l,w,h) 25 x 25 x 45 cm

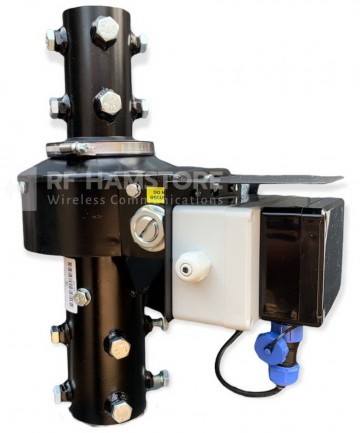

NEW Model SPID HIGH RESOLUTION ROTOR for Azimuth Rotation.
RESOLUTION: 0.2 Degree !

This SPID RAK/HR is supplied with: New pulse count electronincs and new IP-68 Connector set !!

SPID RAK/HR and MD-0X is a high persision (track) rototator system
Rotor Controller MD-0X has many functions which can be configured by the user.
For continuous operation a Dual Voltage power supply, type PS-0X is recommend.

SPID RAK/HR rotor is a Single engine rotor which has installed a position sensors (transsmision 0,125 degree on impulse) counting will be 0,1 degree on impulse and readable at the display.

To control the rotor through the MD-02 controller module you need 2-core control cable (2*1.5mm2) to control the Azimuth engine and 4-core to detect the positions sensors.

* SPID type RAK/HR will handle Medium systems arry's or multiple installations placed one above the other.

SPID RAK/HR rotator can be mount on a pipe of max. 68mm.

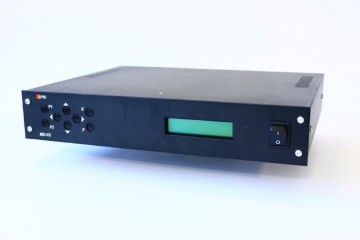

Display MD-02


SPID RAK/HR set is delivered incl.

* High Resolution RAK/HR Rotor
* MD-01 or MD-02 Rotor Controllor with Display
(option MD-01 = 19" rack mount MD-02 = Desktop enclosure)

* Build in track interface (USB)
* MD-01dde Software (to control rotor from PC)
* USB driver
* Connectors
