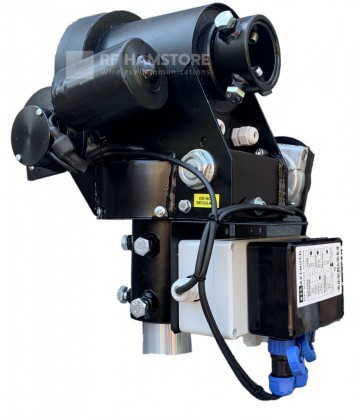

SPID RAS/HR Az & El Rotor

€ 1.695,00 (including VAT 21%)
In stock - Delivery 2 business days
Product code 55-11
Net weight 18,00 Kg
Dimensions (l,w,h) 45 x 40 x 35 cm

RESOLUTION: 0.2 Degree !

New SPID-RAS/HR available, now supplied incl new electronics Pulse count and IP-68 connector set.

SPID RAS/HR and MD-02 is a high persision (track) rototator system
Rotor Controller MD-02 has many functions which can be configured by the user.
For continuous operation a Dual Voltage power supply, type PS-02 is recommend.

SPID RAS/HR rotor is a Dual engine rotor which has installed 2 position sensors (transsmision 0,125 degree on impulse) counting will be 0,1 degree on impulse and readable at the display.

To control the rotor through the MD-02 controller module you need 4-core control cable (2*1.5mm2) to control the Azimuth engine and 8-core to detect the positions sensors.

* RAS/HR will handle Medium systems arry's or Parabolic dishes.

Note: MD-01 = 19" Rack mount / MD-02 = Desktop enclosure.

SPID RAS/HR rotator can be mount on a pipe of max. 68mm.
We can offer you several mounting brackets which can be used to interface between rotor and your antenna
Note: For smooth Elevation rotation it is recommended to add counterweights to this section to creare balance


Display MD-02


SPID RAS/HR set is delivered incl.:

* High Resolution RAS/HR Rotor
* MD-02 Rotor Controllor with Display
* MD-01dde Software (to control rotor from PC)
* Build in track interface MD-02 (USB)
* USB driver
* Connectors
