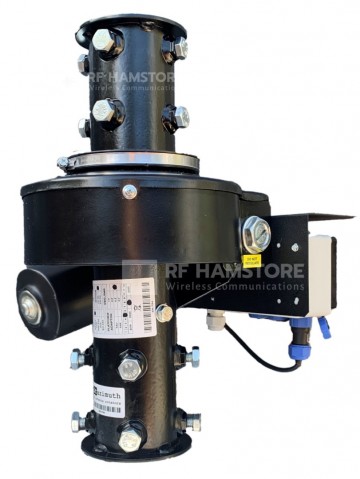

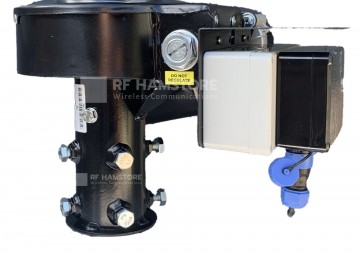

Bigrakhrnew Bigrakhrnew2 Ps 02 1
1 2 3


SPID BIG-RAK/HR & MD-0X < New Model >

€ 1.299,00 (including VAT 21%)
In stock - Delivery : Email for delivery time !!
Specifications
Product code BIG-RAK/HR-13
Net weight 18,00 Kg
Dimensions (l,w,h) 28 x 22 x 22 cm
Description



SPID HIGH RESOLUTION ROTOR for Azimuth, Upgraded Model !
RESOLUTION: 0.2 Degree !

This BIG-RAK/HR is supplied with: New pulse count electronincs and new IP-68 Connector set !!

SPID BIG-RAK/HR and MD-02 is a high persision (track) rototator system
Rotor Controller MD-02 has many functions which can be configured by the user.
For continuous operation a Dual Voltage power supply, type PS-02 is recommend.

Note: Controller: MD-01 = 19" Rack mount / MD-02 = Desktop encolsure

SPID BIG-RAK/HR rotor is a Single engine rotor which has installed a position sensors (transsmision 0,125 degree on impulse) counting will be 0,1 degree on impulse and readable at the display.



BIG-RAK/HR



To control the rotor through the MD-02 controller module you need 2-core control cable (2*1.5mm2) to control the Azimuth engine and 4-core to detect the positions sensors.

* BIG-RAK/HR will handle Big systems arry's or multiple installations placed one above the other.

SPID BIG-RAK/HR rotator can be mount on a pipe of max. 68mm.



Display MD-02



SPID BIG-RAK/HR set is delivered incl.

* High Resolution BIG-RAK/HR Rotor
* MD-02 Rotor Controllor with Display
* MD-01dde Software (to control rotor from PC)
* Build in track interface MD-02 (USB)
* USB driver
* Connectors
