4.5 Meter Mesh Dish max 6GHz (14.8 ft)

€ 6.520,00 (including VAT 21%)
Not in stock
Specifications
Net weight 35,00 Kg
Dimensions (l,w,h) 240 x 45 x 22 cm
Description



Listed price aboive is BUNDLE PRICE in EURO Incl VAT (Export price: Download price list)

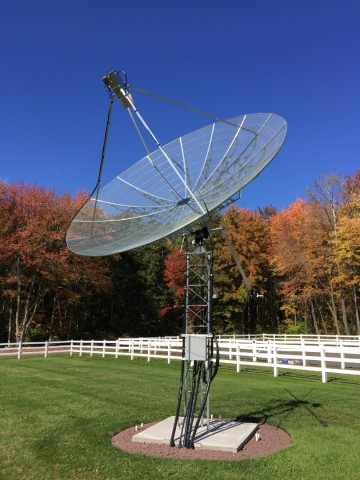

RF HAMDESIGN 4.5 Meter PRIME FOCUS MESH DISH KIT (F/D=0.45)

This MESH DISH KIT is easy to assemble, 20mm square tube aluminium is used for the 16 rib contruction which are pre-assembled and ready to place at the 40cm, 15mm thickness CNC Milled aluminum centers.
The DISH KIT is supplied with a 4 leg feed support, all assembling parts and 6mm square mesh, which can be used up to 6cm band (max 6GHz), option is 2.8mm galvanized wire mesh , max frequency is 11GHz.

You only need a hand driller, a hand riveter, Spanner No:10, 13 and 17, a hand cutter and some time to assemble this DISH KIT.

NOTE:

This 4M5 Mesh Dish can only ordered via our Main Web-site: www.rfhamdesign.com
