Spid ras


SPID RAS Az & El Rotor

€ 1.099,00 € 989,10 (including VAT 21%)
In stock - Delivery 2 business days
Specifications
Product code SPID RAS-65
Net weight 18,00 Kg
Gross weight 25,00 Kg
Dimensions (l,w,h) 50 x 45 x 40 cm
Description

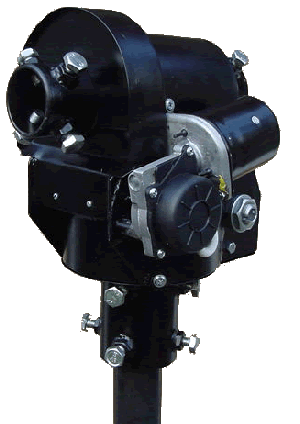

This spid Azimuth and Elevation Rotator (type RAS) is a medium to heavy duty antenna rotator with Controller.
This rotator is designed for large satellite antennas and comes complete with an electronic control unit. The rotator is designed to be mounted on a pipe or on an optional adaptor plate for conventional in-tower mounting.
Controlling a Mesh Dish 2.4 Meter Diameter , a arry for 432MHz with 8 x 26 elements will do fine.!
Note: For smooth Elevation rotation it is recommended to add counterweights to this section to creare balance

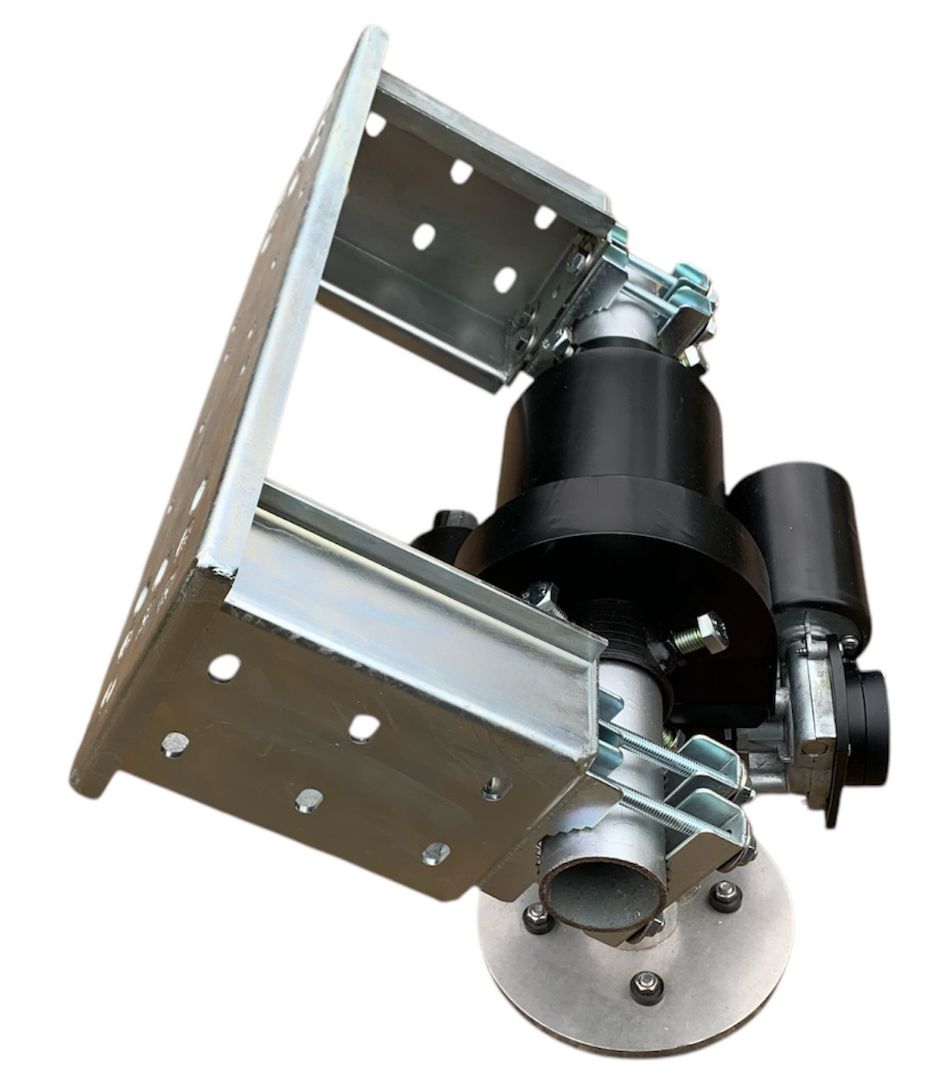

Heavy duty antenna mounting bracket



The AZ & EL rotator can be mount on a pipe of max. 68mm.
Max. diameter pipe for elevation is 51mm
A Heavy Duty mounting bracket is available, to mount for example a 3Meter Dish at the rotator.

Specifications Rotator:

* Double metal worm gear drive reduction for holding position in the wind.
* High torque low voltage DC motor.
* Magnetic reed switch gives 1 pulse per degree.
* Low backlash.
* Uses 8 wire cable connection (4 for each rotator)
* Turning speed rotator:
* Operation voltage 12 Volts to Max 18 Volts DC



AZ & EL Digitale Controller (Rot2Prog)



AZ & EL ROTOR CONTROLLER:

* Twin Green LED digital readout.
* Integrated computer interface (USB)
* Manual or computer control.
* 1 degree resolution.
* Emulates Yaesu GS-232 protocol or uses its own SPID protocol.
* Modified 'mouse' supplied for easy manual control.



AZ & EL Controller insite view



Technical data:
Azimuth angle of turn: 360° +/- 180°
Elevation angle of turn: 180° +/-20°
Azimuth rotation speed: 120 sec. (12V), 100 sec. (18V)
Elevation rotation speed: 80 sec. (12V), 45 sec. (18V)
Motor voltage Max: 18 Volts DC
Weight: 14 kg

The AZ & EL Rotator needs an external power supply of 12... 18V DC max !
Available power supplies page

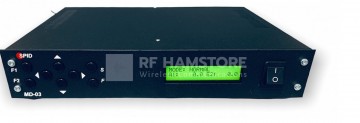

MD-02 Controller



Available option:

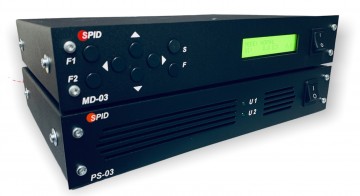

Instead standard controller type Rot2Prog you can order the MD-02 controller (option MD-01, 19" rack mount type)

The MD-01 and MD-02 controller has much more functions as the standard Rot2Prog controller.

New options:

- Soft start en stop, 3 free to program stop and start funtions
- Full USB controlled by MD01dde.exe software
- Build in power full track interface
- 2 lines back light display
- Full acces through IP address (option)

ADD ON Price: EUR 199.00 (Delivery SPID RAS & MD-02 (MD-01)
(Add to your order: MD-02 or MD-01)

Power supply for MD-02 (MD-01):
You can supply the MD-02 with our Power supply type: PW32015 (Max 18volts)
(When you need higer rotation speed, please contact us)



SOFTWARE

Orbitron - Satellite Tracking System (Screen shot)



SOFTWARE for SPID AZ & EL ROTOR:

* Software is available for EME (Moonbounce), Radio Astronomy and Satellite Tracking applications.

Orbitron - Satellite Tracking System (Free)
HAM
radio satellite. But also for Radio astronomy and EME

MOONSKED - Moonbounce tracking voor Windows, Linux en Mac. (Shareware)

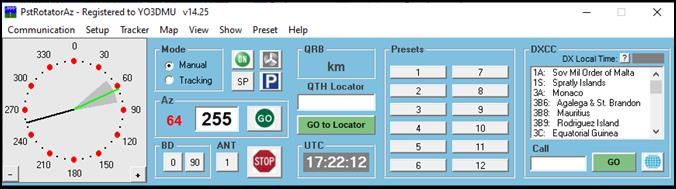

PstRotator



PstRotator - Universal Track software, for Azimuth and Elevation, shareware, YO3DMU.
