Max 6GHz
2m4 dish6mmmesh

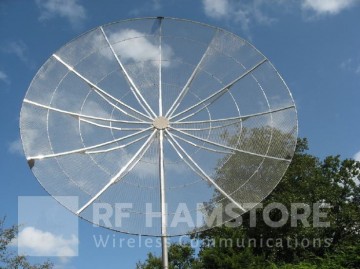

2.4 Meter Mesh Dish max 6GHz (7.9 ft)

€ 783,00 (including VAT 21%)
In stock - Delivery 2 business days
Specifications
Product code DISH2M4/6.0
Net weight 25,00 Kg
Dimensions (l,w,h) 170 x 44 x 22 cm
Description

2.4 Meter DISH, delivered as KIT

2.4Meter Dish KIT



NOTE:

This 2M4 Dish can only ordered via our Main Web-site: www.rfhamdesign.com



New design, light weight, short builing time, prefabricated ribs, all Aluminum !

2.4 Meter
 Prime Focus MESH DISH KIT, easy to assemble, 15mm square tube aluminium is used for the 12 rib contruction which are pre-assembled and ready to place at the 15cm, 10mm thickness aluminium centers.



CNC milled center (2pcs)



The DISH KIT is supplied with a 3 leg dish feed support, all assembling parts and 6mm square mesh, which can be used up 6GHz, option is 2.8mm galvanized wire mesh , max frequency is 11GHz.

As option available full Azimuth & Elevation rotator incl build in track interface, more info...........



Back-site support



You only need a hand driller, a hand riveter, Spanner No:10 and 13, a hand cutter and some time to assemble this DISH KIT

Dish KIT delivered incl:
* all assembly parts
* 6mm sq. MESH
* Rivets
* Mast clamp
* 3-leg feed support
* stainless steel bolts and nuts
* 2* CNC milled Center 150*10mm
