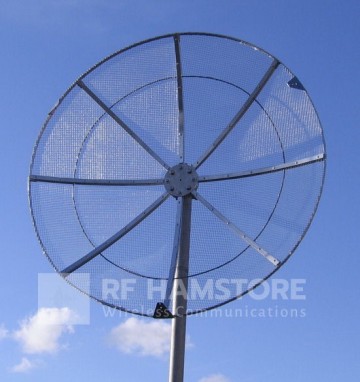

1 Meter Mesh Dish max 11GHz (3.3 ft)

€ 254,00 (including VAT 21%)
In stock - Delivery shipped in 4 to 6 days
Specifications
Product code DISH1M0/2.8-33
Net weight 15,00 Kg
Dimensions (l,w,h) 125 x 44 x 22 cm
Description

1 Meter mesh dish (3.3 ft) supplied incuding 2.8mm Gap Mesh, Max. Frequency of use is max 11GHz
(Model 6GHz and 6mm mesh is Standard delivery)

Standard Delivery is including:

  • All mounting parts
  • 2.8mm gap Galvanised mesh
  • Bolts, nuts and washers stainless steel
  • 3-leg dish feeds support

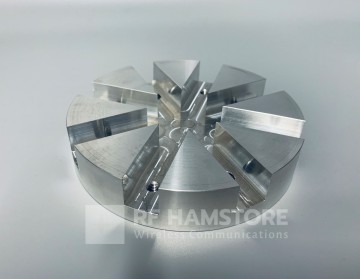

  • CNC Milled percision mounting center
  • Galvanised mast mount clamp (48...52mm)
  • Printed manual
  • Not included is a Dish Feed mounting Bracket !

This Dish Kit can be shipped world wide, if your country is not listed, please contact us direct trough the contact form.



DISH Options:

  • The 1M0 Dish can be supplied with F/D: 0.35 / 0.40 / 0.45 / 0.50
    In stock is F/D=0.45, other F/D = Deliviery time but can be ordered online.
  • Adaptor plate BR-08 is used to interface your Dish with a SPX-01 or SPX-02 rotor
  • Fixed mounting Elevation Bracket BR-50. Used if you need to place your dish to a fixed Azimuth and Elevation direction.



DISH Gain / Beam Width 1M0 DISH / 2.8mm mesh:

Frequency MHz Gain dBi (Eff = 60%) Half beam width degr. (-3dB)
1000 18.2 10.9
2000 24.2 5.5
3000 27.7 3.6
4000 30.2 2.7
5000 32.1 2.1
6000 33.7 1.8
7000  35 1.6
8000 36.2 1.4
9000 37.2 1.2
10000 38.1 1.1
11000 39 1



DISH Feeds:

RF HAMSTORE can supply several Dish feeds, please check the DISH FEED section of this web-shop.
(Note: Please send us your inquiry if you need a special dish feed / freq)



Download Specifications 1.0 Meter Dish Kit [16.196 KB] in PDF Formats.
