Es-Hail Uplink
Lh 0

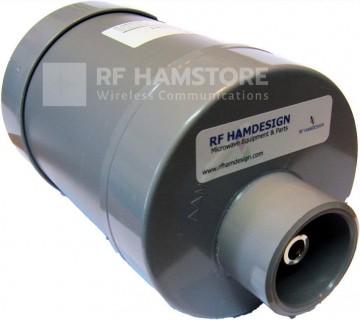

Es Hail-Sat Uplink LHCP HELIX dish feed, Tuned to 2.4GHz

€ 121,00 (including VAT 21%)
In stock - Delivery 3...5 business days
Specifications
Product code LH-24XL
Net weight 1,00 Kg
Dimensions (l,w,h) 15 x 110 x 110 cm
Description

Perfect tuned Es Hail-Sat Uplink LHCP HELIX dish feed.
Supplied incl measurement plot from our Network Analyzer
(Note: Passive Dish feed !! No LNA /Converter built in)

Left Hand Circular Polarization 2.4GHz
Useable for the ISS station as well !!


Specification:
* Connector N-Female
* 50 ohm
* Return loss > 27dB
* Waterproof
* F/D: 0.45 - 0.5 (Prime Focus)
* Dimensions: D=110mm / L=150mm
* Weight: 0.56Kg
* Feed clamp available, type CLX1

P/N:  LH-24XL

Info: LHCP Polarization:
When this dish feed is placed in front of a dish the polarization changes to RHCP.

Note: HELIX Dish feeds are available for other frequency. Mail for info
