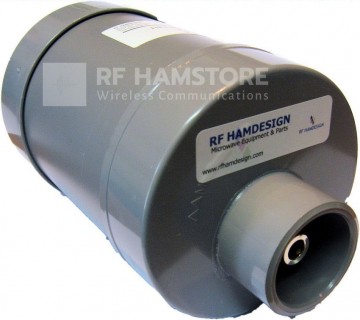

L-Band LHCP HELIX dish feed, tuneable between 1.4 - 1.8 GHz (100 MHz Bandwidth)

€ 121,00 (including VAT 21%)
In stock - Delivery in 8 to 10 business days.
Specifications
Product code LH-23XL
Net weight 1,00 Kg
Dimensions (l,w,h) 200 x 110 x 110 cm
Description

LHCP HELIX dish feed, tuneable between 1.4 - 1.8 GHz (100 MHz Bandwidth)
Left Hand Circular Polarization
(Other frequency and RHCP on request)

Specification:
* Connector N-Female
* RF Power 100 Watts CW
* 50 ohm
* Return loss > 27dB
* Waterproof
* F/D: 0.45 - 0.5 (Prime Focus)
* Dimensions: D=110mm / L=200mm
* Weight: 0.6Kg
* Feed clamp available, type CLX1

Enter your Center Frequency in the: "Tuned to" Field in MHz during order !!

Info: LHCP Polarization:
When this dish feed is placed in front of a dish the polarization changes to RHCP.

P/N:  LH-23XL


Note: HELIX Dish feeds are available for other frequency. Mail for info
