Max 11GHz

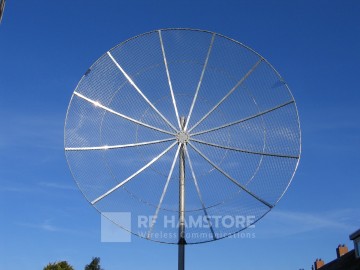

1m9 dish6mmmesh 1


1.9 Meter Mesh Dish max 11GHz (6.2 ft)

€ 460,00 (including VAT 21%)
In stock - Delivery shipped in 4 to 6 days
Specifications
Product code DISH1M9/2.8-57
Net weight 18,00 Kg
Dimensions (l,w,h) 125 x 44 x 22 cm
Description

1.9 Meter mesh dish (6.2 ft) supplied incuding 2.8mm Gap Mesh, Max. Frequency of use is 11GHz
(Model 6GHz and 6mm mesh is Standard Version)

Standard Delivery is including:

  • All mounting parts
  • 2.8mm gap Galvanised mesh
  • Bolts, nuts and washers stainless steel
  • 3-leg dish feeds support
  • CNC Milled percision mounting center
  • Galvanised mast mount clamp (48...52mm)
  • Printed manual
  • Not included is a Dish Feed mounting Bracket !

This Dish Kit can be shipped world wide, if your country is not listed, please contact us direct trough the contact form.



DISH Options:

  • The 1M9 Dish can be supplied with F/D: 0.35 / 0.40 / 0.45 / 0.50
    In stock is F/D=0.45, other F/D = Deliviery time but can be ordered online.
  • Adaptor plate BR-08 is used to interface your Dish with a SPX-01 or SPX-02 rotor
  • Fixed mounting Elevation Bracket BR-50. Used if you need to place your dish to a fixed Azimuth and Elevation direction.



DISH Gain / Beam Width 1M9 DISH / 2.8mm mesh:

Frequency MHz Gain dBi (Eff = 60%) Half beam width degr. (-3dB)
1000 23.7 5.7
2000 29.7 2.8
3000 33.3 1.9
4000 35.8 1.4
5000 37.4 1.1
6000 39.3 0.9
7000 40.6 0.8
8000 41.8 0.7
9000 42.8 0.6
10000 43.7 0.54
11000 44.5 0.52



DISH Feeds:

RF HAMSTORE can supply several Dish feeds, please check the DISH FEED section of this web-shop.
(Note: Please send us your inquiry if you need a special dish feed / freq)



* Download Specifications 1.9 Meter Dish Kit [17.104 KB] in PDF Formats.
