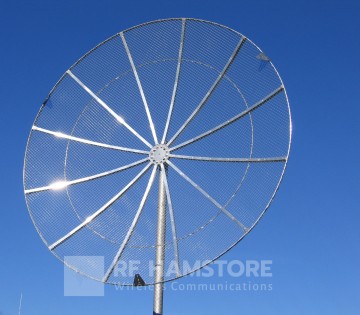

1.5 Meter Mesh Dish max 11GHz (4.9 ft)

€ 378,00 (including VAT 21%)
In stock - Delivery shipped in 4 to 6 days
Specifications
Product code DISH1M2/2.8-1-49
Net weight 18,00 Kg
Dimensions (l,w,h) 125 x 44 x 22 cm
Description

1.5 Meter mesh dish (4.9 ft) supplied incuding 2.8mm Gap Mesh, Max. Frequency of use is 11GHz
(Model 6GHz and 6mm mesh is Standard Version)

Standard Delivery is including:

  • All mounting parts
  • 2.8mm gap Galvanised mesh
  • Bolts, nuts and washers stainless steel
  • 3-leg dish feeds support

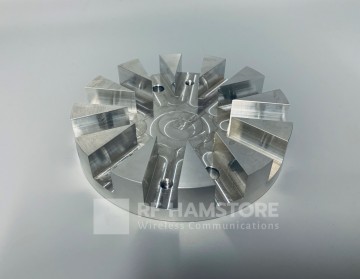

  • CNC Milled percision mounting center
  • Galvanised mast mount clamp (48...52mm)
  • Printed manual
  • Not included is a Dish Feed mounting Bracket !

This Dish Kit can be shipped world wide, if your country is not listed, please contact us direct trough the contact form.



DISH Options:

  • The 1M5 Dish can be supplied with F/D: 0.35 / 0.40 / 0.45 / 0.50
    In stock is F/D=0.45, other F/D = Deliviery time but can be ordered online.
  • Adaptor plate BR-08 is used to interface your Dish with a SPX-01 or SPX-02 rotor
  • Fixed mounting Elevation Bracket BR-50. Used if you need to place your dish to a fixed Azimuth and Elevation direction.



DISH Gain / Beam Width 1M5 DISH / 6mm mesh:

Frequency MHz Gain dBi (Eff = 60%) Half beam width degr. (-3dB)
1000 21.7 7.2
2000 27.2 3.6
3000 31.2 2.4
4000 33.7 1.8
5000 35.6 1.5
6000 37.2 1.2
7000 38.6 1
8000 39.7 0.9
9000 40.7 0.8
10000 41.7 0.7
11000 42.5 0.6



DISH Feeds:

RF HAMSTORE can supply several Dish feeds, please check the DISH FEED section of this web-shop.
(Note: Please send us your inquiry if you need a special dish feed / freq)



* Download Specifications 1.5 Meter Dish Kit [15.525 KB] in PDF Formats.
