Max 11GHz
1m2dish6mmmesh 0 Dish 8 rib
1 2

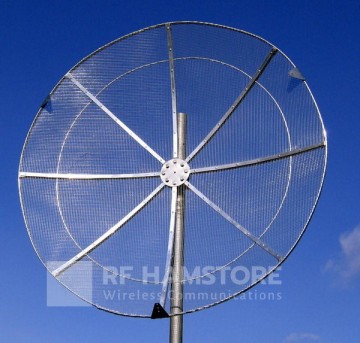

1.2 Meter Mesh Dish max 11GHz (3.94 ft)

€ 348,00 (including VAT 21%)
In stock - Delivery Please inquiry through email
Specifications
Product code DISH1M2/2.8-41
Net weight 16,00 Kg
Dimensions (l,w,h) 125 x 44 x 22 cm
Description

I1.2 Meter mesh dish (3.94 ft) supplied incuding 2.8mm Gap Mesh, Max. Frequency of use is 11GHz
(Model 6GHz and 6mm mesh is Standard Version)

Standard Delivery is including:

  • All mounting parts
  • 2.8mm gap Galvanised mesh
  • Bolts, nuts and washers stainless steel
  • 3-leg dish feeds support
  • CNC Milled percision mounting center
  • Galvanised mast mount clamp (48...52mm)
  • Printed manual
  • Not included is a Dish Feed mounting Bracket !

This Dish Kit can be shipped world wide, if your country is not listed, please contact us direct trough the contact form.



DISH Options:

  • The 1M2 Dish can be supplied with F/D: 0.35 / 0.40 / 0.45 / 0.50
    In stock is F/D=0.45, other F/D = Deliviery time but can be ordered online.
  • Adaptor plate BR-08 is used to interface your Dish with a SPX-01 or SPX-02 rotor
  • Fixed mounting Elevation Bracket BR-50. Used if you need to place your dish to a fixed Azimuth and Elevation direction.



DISH Gain / Beam Width 1M2 DISH / 6mm mesh:

Frequency MHz Gain dBi (Eff = 60%) Half beam width degr. (-3dB)
1000 19.7 9.1
2000 25.8 4.5
3000 29.3 3
4000 31.8 2.3
5000 33.7 1.8
6000 35.3 1.5
7000 36.6 1.3
8000 37.8 1.1
9000 38.8 1
10000 39.7 0.9
11000 40.6 0.8



DISH Feeds:

RF HAMSTORE can supply several Dish feeds, please check the DISH FEED section of this web-shop.
(Note: Please send us your inquiry if you need a special dish feed / freq)



* Download Specifications 1.2 Meter Dish Kit [16.331 KB] in PDF Formats.
