Max 6GHz
1m0dish 6mm 0 Dish 8 rib 2
1 2

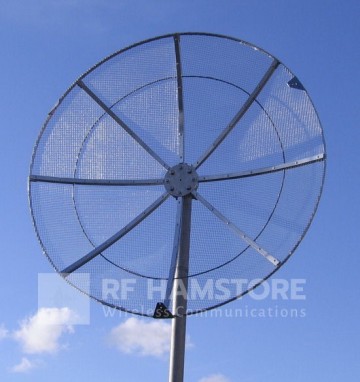

1 Meter Mesh Dish max 6GHz (3.3 ft)

€ 230,00 (including VAT 21%)
In stock - Delivery shipped in 4 to 6 days
Specifications
Product code 87-53
Net weight 15,00 Kg
Dimensions (l,w,h) 125 x 44 x 22 cm
Description

1 Meter mesh dish (3.3 ft) supplied incuding 6mm Gap Mesh, Max. Frequency of use is 6GHz
(Model 11GHz and 2.8mm mesh is Option)

Standard Delivery is including:

  • All mounting parts
  • 6mm gap Galvanised mesh
  • Bolts, nuts and washers stainless steel
  • 3-leg dish feeds support

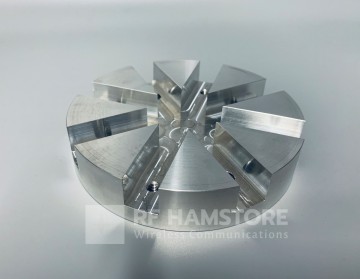

  • CNC Milled percision mounting center
  • Galvanised mast mount clamp (48...52mm)
  • Printed manual
  • Not included is a Dish Feed mounting Bracket !

This Dish Kit can be shipped world wide, if your country is not listed, please contact us direct trough the contact form.



DISH Options:

  • The 1M0 Dish can be supplied with F/D: 0.35 / 0.40 / 0.45 / 0.50
    In stock is F/D=0.45, other F/D = Deliviery time but can be ordered online.
  • Adaptor plate BR-08 is used to interface your Dish with a SPX-01 or SPX-02 rotor
  • Fixed mounting Elevation Bracket BR-50. Used if you need to place your dish to a fixed Azimuth and Elevation direction.



DISH Gain / Beam Width 1M0 DISH / 6mm mesh:

Frequency MHz Gain dBi (Eff = 60%) Half beam width degr. (-3dB)
1000 18.2 10.9
2000 24.2 5.5
3000 27.7 3.6
4000 30.2 2.7
5000 32.1 2.1
6000 33.7 1.8



DISH Feeds:

RF HAMSTORE can supply several Dish feeds, please check the DISH FEED section of this web-shop.
(Note: Please send us your inquiry if you need a special dish feed / freq)



Download Specifications 1.0 Meter Dish Kit [16.196 KB] in PDF Formats.
