SPX-01/HR Azimuth & Elevation, Light Duty

€ 989,00 (including VAT 21%)
Not in stock
Specifications
Product code SPX-01/HR-17
Net weight 18,00 Kg
Dimensions (l,w,h) 45 x 45 x 40 cm
Description

SPX-01/HR, High resolution version: AZ & EL rotation, Resolution 0.2 degree (P/N: SPX-01/HR)

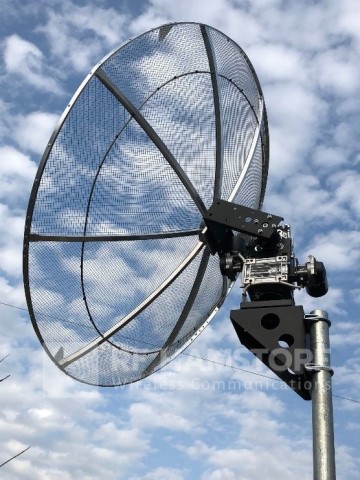

The SPX-01 is a Light Duty solution to Rotate in Azimuth and Elevation your Antenna, Dish antenna , Astronomy Tele scope, Camera, Light Box and many more which must be rotated in 2 axes.
This Rotor is supplied including Mounting Antenna Bracket !



Ham Radio Portable Station: VK5KX



Available Options:

#1
Mounting bracket to mount objects on the side of the rotor (P/N: ARM-02)
#2

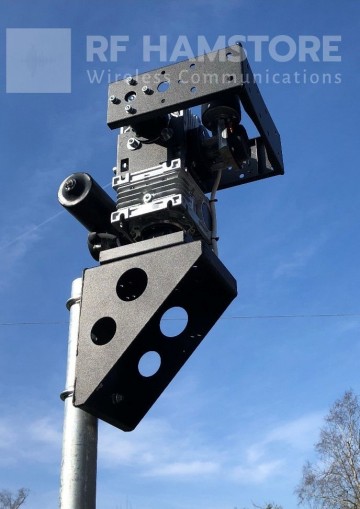

Mounting bracket to interface beteen Vertical pole (mast) and rotor (P/N: PLATE-03)

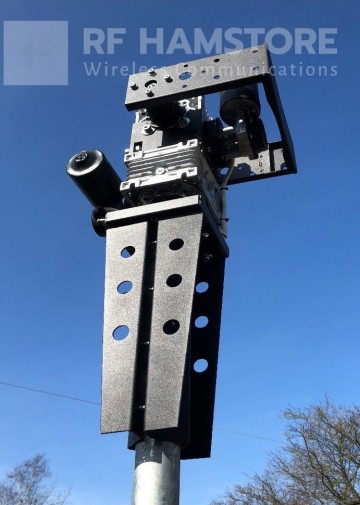

#3 Mounting bracket to interface beteen Vertical pole (mast) and rotor (P/N: PLATE-04)
#4 Ethernet module to control your rotor system through TCP/IP in /HR series ! (P/N: SPID-ET)

More options available in the SPX-01 Specifications sheet [795 KB] in PDF formats

Each rotor set is
Supplied included controller and build in Track interface (USB), lot of tracking program available and easy to install on your Lap-Top or PC and connect the Controller through USB.
You can now auto track Moon, Sun, stars, constellations, galaxies, planets, etc etc.
But if you prefer you can operate manual by pressing the buttons on the front of the panel or supplied mouse.

SPX-01/HR High Resolution Azimuth & Elevation Rotor System

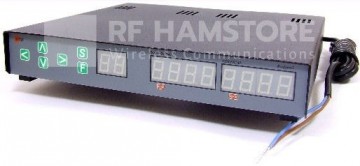

MD-02 High Resolution Controller



Controller / Power supply info:

  • MD-01 and MD-02 are electrical equal, only difference is enclosure
    MD-01 = 19" Rack mount enclosure
    MD-02 = Desktop enclosure
  • You can add your choise during order, select MD-01 or MD-02 enclosure
  • We would advice power supply PS-01 or PS-02, same info as above regarding enclosure
    (Power supply is an option)


SPX-01/HR



This model is the High Resolution version, supplied including SPX-01/HR rotor and:

#1 Flat mounting plate to be placed on base-plate
#2 Heavy duty Mounting arm which can be used to mount antenna's
#3 High Resolution Controller model MD-01 or MD-02
#4 High Resolution 0.2 degree / step
#5 Integrated computer track interface (USB)
#6 Manual or computer control.
#7 Supplied incl. CD-Rom, Connectors, fast start guide, Build in track interface (USB)
